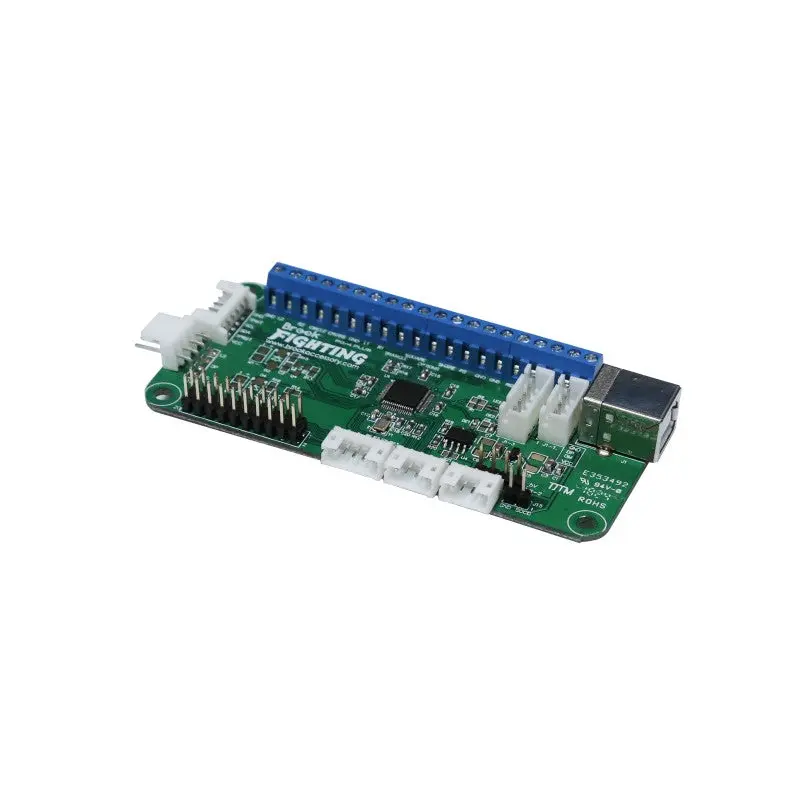

Brook PS3 / PS4 Fighting Board Plus
Overview:
Brooks new PS3/PS4 Fighting Board Plus is a new revision of the original PS3/PS4 board but with pre-soldered connectors allowing easy hook up using harnesses. Please note that this PS3/PS4 PCB doesn't have audio, if you need audio you can upgrade to the PS3/PS4+ Audio Board by Brook. If you don't need the audio function but want an easy to set up PS3/PS4 board, this will be the board you want.
Features:
- Compatible with all PS3 / PS4 buttons and Xinput on PC
- Eighteen different button configurations
- Four different Player LEDs
- Support One Touchpad function (optional purchase)
- Support Turbo Key function
- Automatically change the modes on different consoles
- Manually change PS3/PS4/PC modes
- Support two SOCD modes
- Support LS, RS, and DP modes
- Firmware upgradable
Wiring Diagrams:
J15 jumper settings for alternative SOC:
Manually changing directional input modes:
