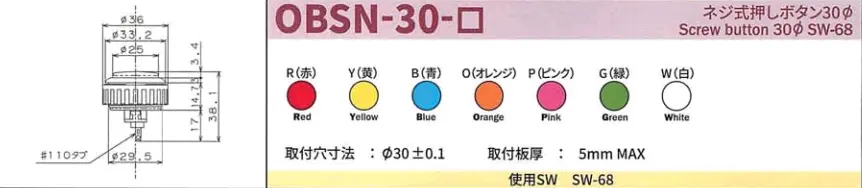

Sanwa OBSN-30 Screw-in Button - White
TheĀ Sanwa OBSN-30Ā seriesĀ threaded pushbutton is specifically created for wooden joystick enclosures with a thicker top. The adjustable screw feature and lower form-factor make it ideal to use in your custom set up.
Specifications:
- Mounts in metal or wood control panelsĀ
- Durable Nylon Plastic
- Small push button with shallow mounting depth
- .110 quick connect terminals
Switch(SW-68) Specification:
- Operating position(OP): 0.85mm
- Total travel position(TTP): 2.53mm
- Required force to move button from FP: 27g
- Operating Force(OF): 55g
- Total travel Force(TTF): 81g
- Rating: DC12V100mA
- Insulation resistance (IR): DC250V/50MĪ© over between terminals
- Withstanding voltage (DWV): AC250V/1 minutes between terminals
- Operating temperature range: -20~+60Ā°cĀ
- Lifespan: 1 million under 5VDC10mA
- Contact resistance (ECR): 50mĪ© below
