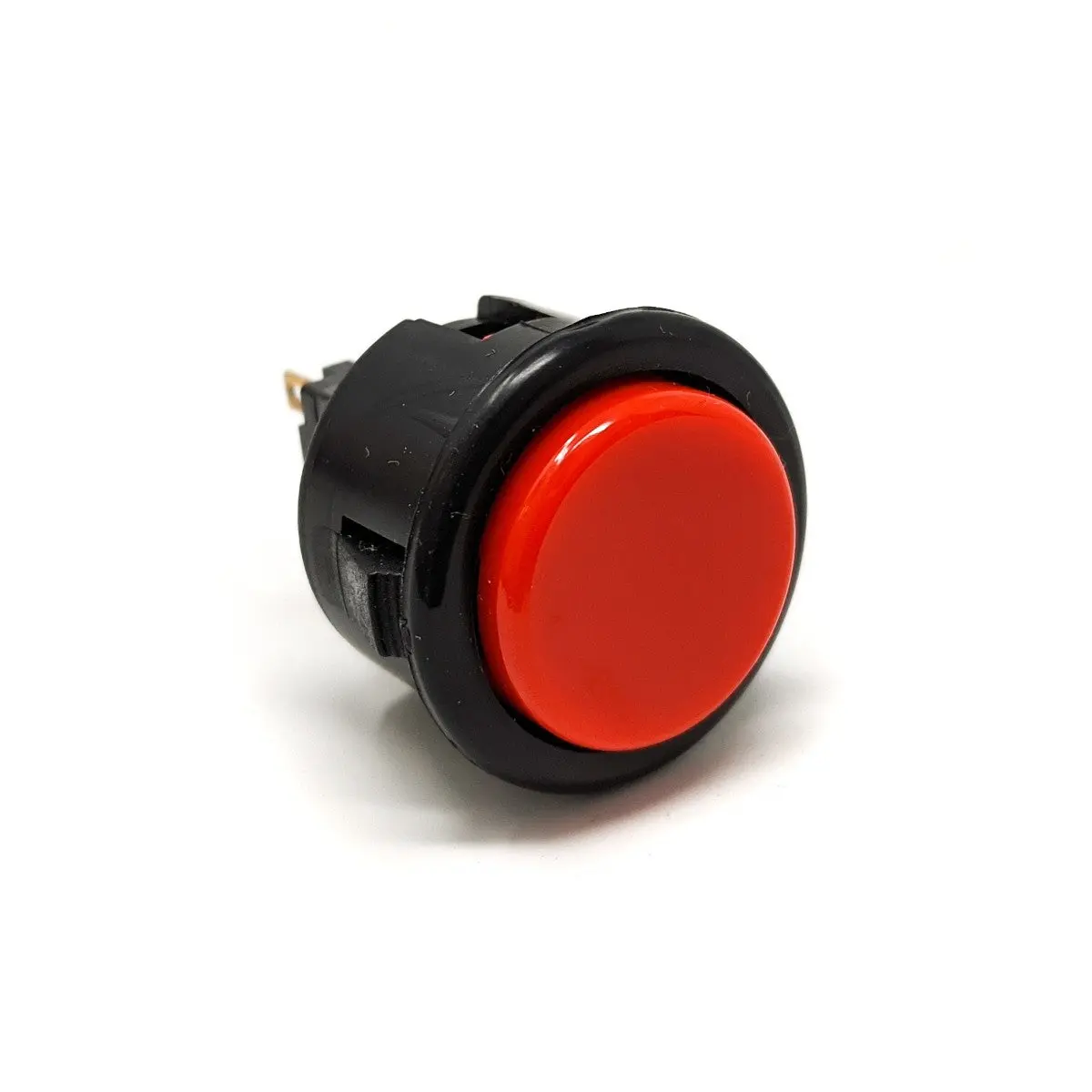

Seimitsu PS-14-D 24mm Snap-in Button - Black & Red
TheĀ Seimitsu PS-14-DĀ is a solid color, flat top, 24mm pushbutton designed to snap into a metal control panel.Ā
This pushbutton is available in 7 colors, Red, White, Blue, Green, Yellow, Ā Pink and Black. It is also available withĀ a black rim.Ā

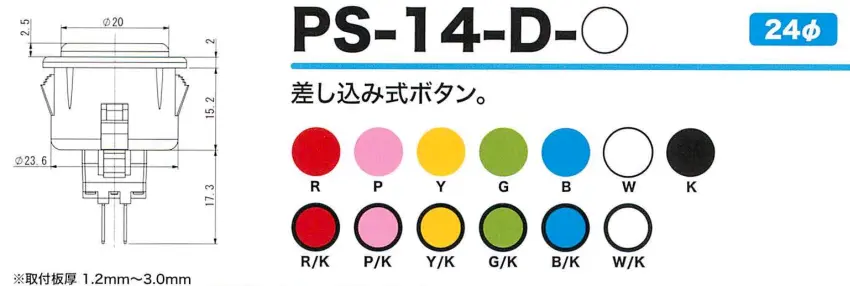

Specification:
- Solid black rim, Solid color plunger
- Diameter: 24 mm (0.945 inch)
- Overall diameter: 27 mm (1.063 inch)
- .110 quick connects
- Used most commonly for Start, Select, Home action buttons and Hit Boxes
- Snap-in Button
Microswitch Specification:
- Product Name:Ā MM9-3
- Manufacturer: Tokai Tushinkizai (ę±ęµ·éäæ”åØęę Ŗå¼ä¼ē¤¾)
- Operating force:Ā 100 Ā± 30g
- Stroke distance to Operating Position:Ā 2.5 Ā± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Lifespan Cycle): OverĀ 2,000,000 times
Original: $3.75
-65%$3.75
$1.31More Images
