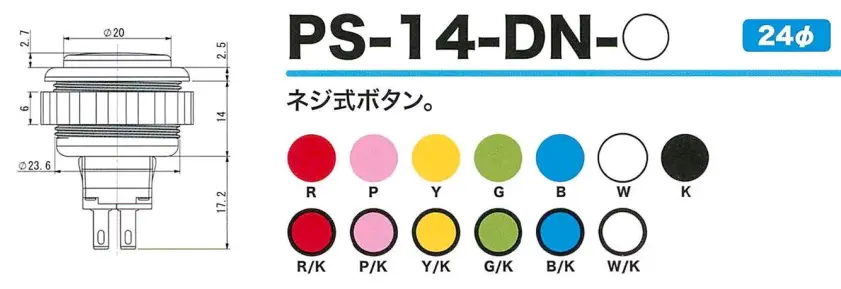

Seimitsu PS-14-DN 24mm Screw-in Button - Black & Pink
TheĀ Black & Pink Seimitsu PS-14-DNĀ hasĀ a threaded solid black bodyĀ withĀ a solid Pink plunger.Ā Ā
This button can be used not only in candy cabinets or fight sticks with a thin control panel but also can be used in a thicker control panel that isĀ over 1/4" thickness.
Specification:
- Solid black rim, Solid color plunger
- Diameter: 24 mm (0.945 inch)
- Overall diameter: 27 mm (1.063 inch)
- .110 quick connects
- Used most commonly for Start, Select, Home action buttons and Hit Boxes
- Button, locking nut and microswitch included
- Screw-in Button
Microswitch Specification:
- Product Name:Ā MM9-3
- Manufacturer: Tokai Tushinkizai (ę±ęµ·éäæ”åØęę Ŗå¼ä¼ē¤¾)
- Operating force:Ā 100 Ā± 30g
- Stroke distance to Operating Position:Ā 2.5 Ā± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Lifespan Cycle): OverĀ 2,000,000 times
More Images
Seimitsu PS-14-DN 24mm Screw-in Button - Black & Pink
TheĀ Black & Pink Seimitsu PS-14-DNĀ hasĀ a threaded solid black bodyĀ withĀ a solid Pink plunger.Ā Ā
This button can be used not only in candy cabinets or fight sticks with a thin control panel but also can be used in a thicker control panel that isĀ over 1/4" thickness.
Specification:
- Solid black rim, Solid color plunger
- Diameter: 24 mm (0.945 inch)
- Overall diameter: 27 mm (1.063 inch)
- .110 quick connects
- Used most commonly for Start, Select, Home action buttons and Hit Boxes
- Button, locking nut and microswitch included
- Screw-in Button
Microswitch Specification:
- Product Name:Ā MM9-3
- Manufacturer: Tokai Tushinkizai (ę±ęµ·éäæ”åØęę Ŗå¼ä¼ē¤¾)
- Operating force:Ā 100 Ā± 30g
- Stroke distance to Operating Position:Ā 2.5 Ā± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Lifespan Cycle): OverĀ 2,000,000 times
