Seimitsu PS-14-G 30mm Snap-in Button - Black & Blue

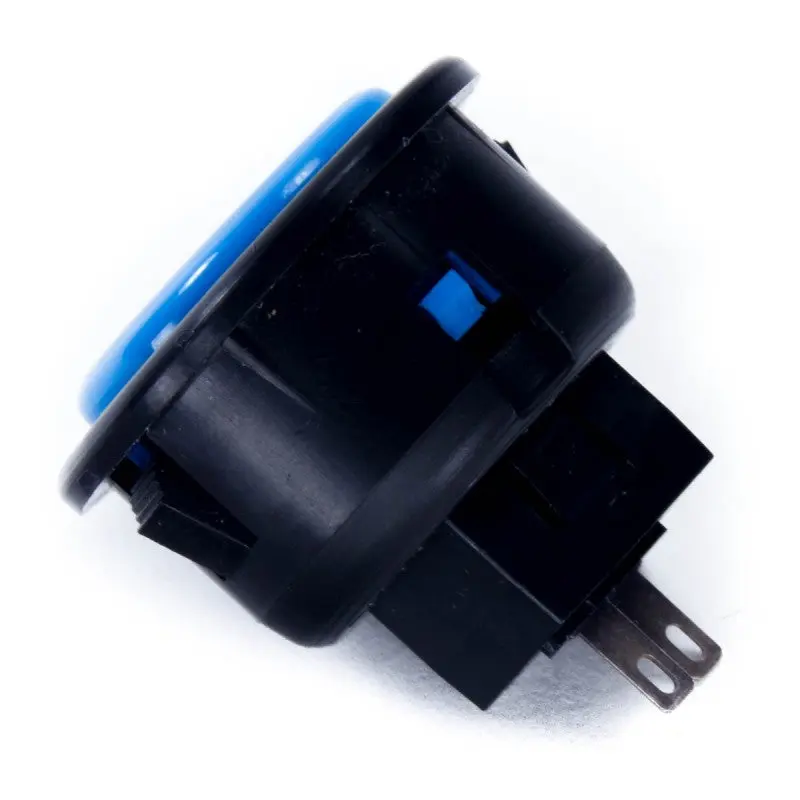

Seimitsu black bezel pushbutton with Blue plane (flat) plunger.
Specifications:

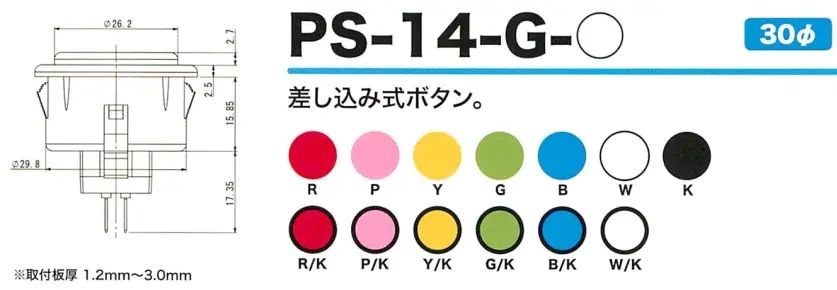

- Diameter: 30 mm (1.181 inch), snap-in action (no thread, no screwing).
- Overall diameter: 34.5 mm (1.358 inch),
- Installation depth: 32.5 mm (1.28 inch)
- .110 terminals
- For Metal control panels
Microswitch Specification:
- Product Name: MM9-4
- Manufacturer: Tokai Tushinkizai (東海通信器材株式会社)
- Operating force: 100 ± 30g
- Stroke distance to Operating Position: 2.5 ± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Cycle): Over 2,000,000 times
$3.75
Seimitsu PS-14-G 30mm Snap-in Button - Black & Blue—
$3.75
More Images
Seimitsu PS-14-G 30mm Snap-in Button - Black & Blue
Seimitsu black bezel pushbutton with Blue plane (flat) plunger.
Specifications:
- Diameter: 30 mm (1.181 inch), snap-in action (no thread, no screwing).
- Overall diameter: 34.5 mm (1.358 inch),
- Installation depth: 32.5 mm (1.28 inch)
- .110 terminals
- For Metal control panels
Microswitch Specification:
- Product Name: MM9-4
- Manufacturer: Tokai Tushinkizai (東海通信器材株式会社)
- Operating force: 100 ± 30g
- Stroke distance to Operating Position: 2.5 ± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Cycle): Over 2,000,000 times
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Seimitsu black bezel pushbutton with Blue plane (flat) plunger.
Specifications:
- Diameter: 30 mm (1.181 inch), snap-in action (no thread, no screwing).
- Overall diameter: 34.5 mm (1.358 inch),
- Installation depth: 32.5 mm (1.28 inch)
- .110 terminals
- For Metal control panels
Microswitch Specification:
- Product Name: MM9-4
- Manufacturer: Tokai Tushinkizai (東海通信器材株式会社)
- Operating force: 100 ± 30g
- Stroke distance to Operating Position: 2.5 ± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Cycle): Over 2,000,000 times
