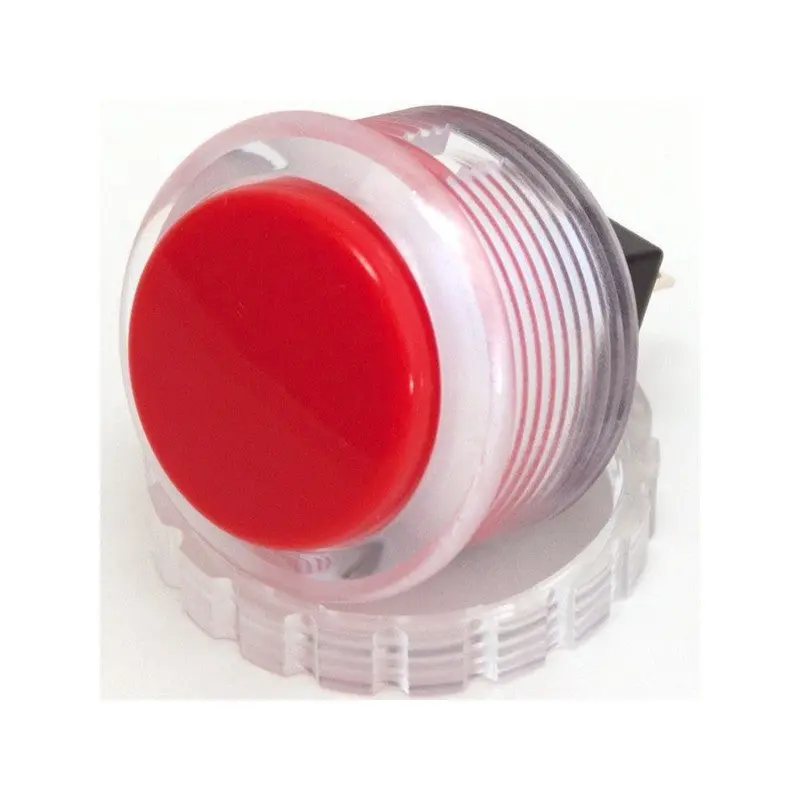

Seimitsu PS-14-KN 30 mm Screw-in Button - Clear White & Red
*** Seimitsu has recently replaced and released a new black button nut (screwbutton ring) for their 30 mm screw buttons. The new button nut is thinner than the original one. It's perfect for the fight stick with small space.
SeimitsuĀ threaded Clear White pushbuttonĀ withĀ solid Red plane (flat) plunger.
TheĀ Seimitsu PS-14-KNĀ has a threaded clearĀ color body with aĀ clear plunger. This button can be used not only in candy cabinets or fight sticks with a thin control panel but also can be used in a thicker control panel that isĀ over 1/4" thickness.
Specification:
- Translucent rim, solid color plunger
- Diameter: 30 mm (1.181 inch)
- Overall diameter: 34.5 mm (1.358 inch)
- Installation depth: 32.5 mm (1.28 inch)
- .110" quick connects
- For Metal, wooden or plastic/fiberglass control panels
- Button, locking nut and microswitch included
-
Screw-inĀ buttons
Microswitch Specification:
- Product Name:Ā MM9-4
- Manufacturer: Tokai Tushinkizai (ę±ęµ·éäæ”åØęę Ŗå¼ä¼ē¤¾)
- Operating force:Ā 100 Ā± 30g
- Stroke distance to Operating Position:Ā 2.5 Ā± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Cycle): OverĀ 2,000,000 times
Original: $3.95
-65%$3.95
$1.38More Images
Seimitsu PS-14-KN 30 mm Screw-in Button - Clear White & Red
*** Seimitsu has recently replaced and released a new black button nut (screwbutton ring) for their 30 mm screw buttons. The new button nut is thinner than the original one. It's perfect for the fight stick with small space.
SeimitsuĀ threaded Clear White pushbuttonĀ withĀ solid Red plane (flat) plunger.
TheĀ Seimitsu PS-14-KNĀ has a threaded clearĀ color body with aĀ clear plunger. This button can be used not only in candy cabinets or fight sticks with a thin control panel but also can be used in a thicker control panel that isĀ over 1/4" thickness.
Specification:
- Translucent rim, solid color plunger
- Diameter: 30 mm (1.181 inch)
- Overall diameter: 34.5 mm (1.358 inch)
- Installation depth: 32.5 mm (1.28 inch)
- .110" quick connects
- For Metal, wooden or plastic/fiberglass control panels
- Button, locking nut and microswitch included
-
Screw-inĀ buttons
Microswitch Specification:
- Product Name:Ā MM9-4
- Manufacturer: Tokai Tushinkizai (ę±ęµ·éäæ”åØęę Ŗå¼ä¼ē¤¾)
- Operating force:Ā 100 Ā± 30g
- Stroke distance to Operating Position:Ā 2.5 Ā± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Cycle): OverĀ 2,000,000 times
