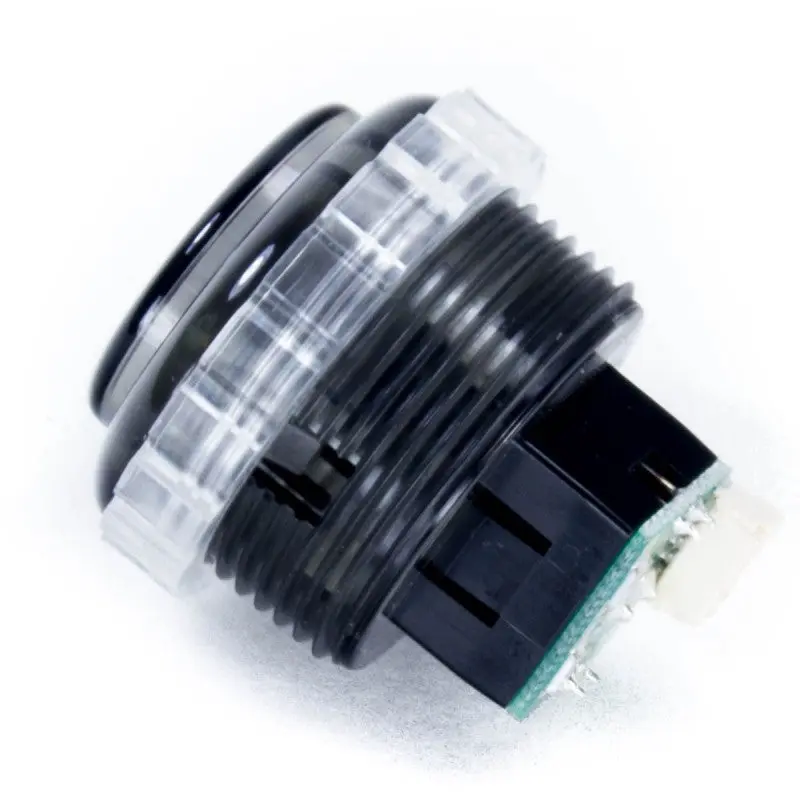

Seimitsu PSL-30N 30 mm Screw-in Button - Clear Smoke
Smoke, 30mm, translucent convex Japanese style buttons. Great buttons for new panels, fight sticks, and candy cabinets.
*******Ā Harness (PSL-H)Ā for the micro switch is not included. You need to purchase it separately.
TheĀ Seimitsu PSL-30NĀ has a threaded clearĀ color body with aĀ clear plunger. This button can be used not only in candy cabinets or fight sticks with a thin control panel but also can be used in a thicker control panel that isĀ over 1/4" thickness.
Specification:
- Translucent rim,Ā TranslucentĀ color plunger
- Diameter: 30 mm (1.181 inch)
- Overall diameter: 34.5 mm (1.358 inch)
- Installation depth: 32.5 mm (1.28 inch)
- .110" quick connects
- For Metal, wooden or plastic/fiberglass control panels
- Button, locking nut and microswitch with LED included
-
Screw-inĀ buttons
Microswitch Specification:
- Product Name:Ā MM9-PSU-5V
- Manufacturer: Tokai Tushinkizai (ę±ęµ·éäæ”åØęę Ŗå¼ä¼ē¤¾)
- RequireĀ PSL-H harnessĀ to use
- Built in 5VDC LED
- Operating force:Ā 100 Ā± 30g
- Stroke distance to Operating Position:Ā 2.5 Ā± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Cycle): OverĀ 2,000,000 times
Original: $9.25
-65%$9.25
$3.24More Images
